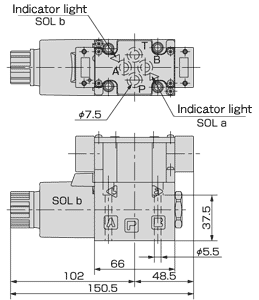

AC Solenoid valve
SS-G01-A**-R-C*-31
SS-G01-H**-R-C*-31
Note :
For SS-G01-H**-R**-31, the solenoid is located on the side (SOL a) opposite to that shown in the drawing.
SS-G01-C**-R-C*-31
SS-G01-E**-R-C*-31
With DC solenoid and rectifier
SS-G01-A**-R-D/E*-31
SS-G01-H**-R-D/E*-31
SS-G01-C**-R-D/E*-31
SS-G01-E**-R-D/E*-31
A fixed throttle valve can be inserted into the ports P, A and B(for both SS and SA types).
Notes :
1. For SA-G01-H**-*-D*/E*-31, the solenoid is located on the side(SOL a) opposite to that shown in the drawing.
2. For SA-G01-**-E*-31, the dimension 1 is 96mm, and dimension 2 is 73mm

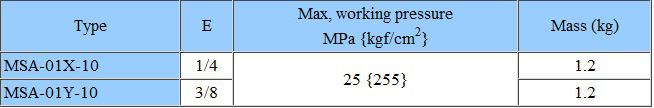

Sub-plate

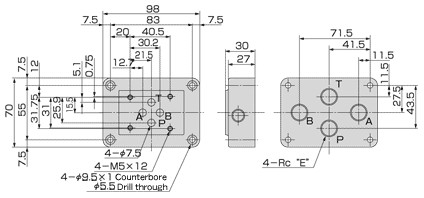

Gasket surface dimensions
Note : If you want to use at a pressure of 25 MPa or more, please contact us.![]() |
